HEAT REGENERATORS
|
Ecoaria produces a set of boxes with
heat regenerators, to be installed inside or outside,
employed in those environmets where the need of air
chenge occures without altering internal temperature.
|
|
An alluminium cross flux heat exchanger
and two centrifugal ventilators (one for stale air
outlet and one for clean external air inlet) are employed
in this system.
|
|

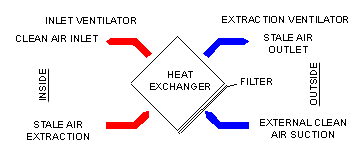

As showed in the diagram extracted
air heats/cools clean inlet air, to the advantage
of energy savings. The system is complited by
filtering elements, by a collecting and condensate
discharging cistern and an internal deadening
insulation that enables maximum noiselessness.
|
|
|
|
The installation is very simple because
of boxe's lightness. If mounted on the inside, two
will be the required holes in the wall: one for stale
air outlet and one for external air inlet. External
operating temperature varies between -10°C and
+50°C. A control pannel will be set up in the
room to enable air rate adjustments.
|
|
Where maintenance is concerned periodical
cleaning and filter substitution is required. Regenerators
have a long life because composed of non-motion parts
(ventilators excluded).
|
|
|
